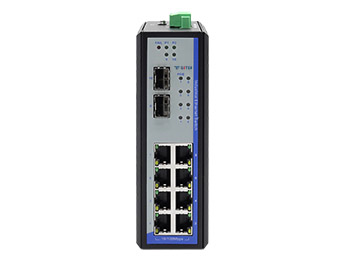

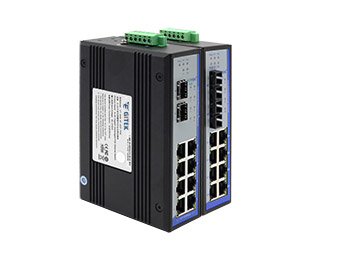

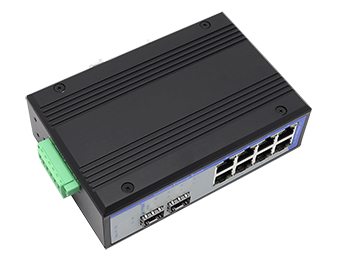

UT-6428-POE UOTEK 8+2G Gigabit POE Ethernet Switch
● Supports 8 POE Power over Ethernet
● Support various combinations of Fast Ethernet and optical ports (ST/FC/SC/SFP interface types)
● Support power abnormal state relay output alarm function
● Plug and play for easy access
● Operating temperature: -40 ~ 75 °C
The UT-6428 series unmanaged Gigabit industrial Ethernet switches support 8 10/100Base-T(X) Ethernet ports (IEEE802.3af/at(POE) compatible) and 2 1000Base-X ports. Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when AC power is not available or limited by other factors. It can work for industrial automation, intelligent transportation, video surveillance and other industrial applications with greater advantages.
Protocol Standards
| Standard | IEEE 802.3af/at, IEEE802.3. IEEE802.3u, IEEE802.3z |
| Flow control | IEEE802.3x flow control, backpressure flow control |
Interfaces
| Fiber optic interface | 1000Base-X port (SC/FC/ST/SFP slot) |
| RJ45 interface | 10/100Base-T (X) port, support POE output |
| POE pins | V+ ,V+, V-,V- corresponding to pins 1,2,3,6 (default) |
| LED indicator light | Power indicator, optical port indicator, RJ45 indicator, alarm indicator, POE indicator |
Transmission Distance
| Cat.5e | 100m |
Fiber Patch Cord Single-mode | 1310nm 20/40/60Km 1550nm 80/100/120Km |
Fiber Patch Cord Multi-mode | 1310nm 2Km |
Switching Performance
100M Forwarding rate | 148810pps |
| 1000M Forwarding rate | 1488095pps |
Transmission mode | store and forward |
MAC address size | 8K |
Cache size | 1Mbit |
Backplane bandwidth | 7.6G |
| Max. frame length | 1632B |
Power Requirement
| Input voltage | 48VDC(46-57V),redundant input, support reverse connection protection |

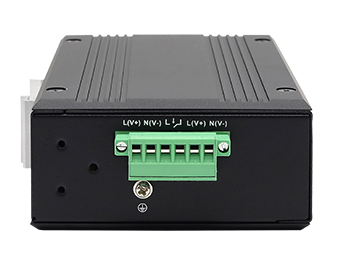

| Interface terminal | 1 pluggable 6-pin terminal block |
| Consumption | single POE network interface up to 30W, the total power consumption no more than 150W |
Mechanical Characteristics
| IP protection level | IP40 |
| Weight | 960g |
| Installation | DIN-Rail /Wall Mounted |

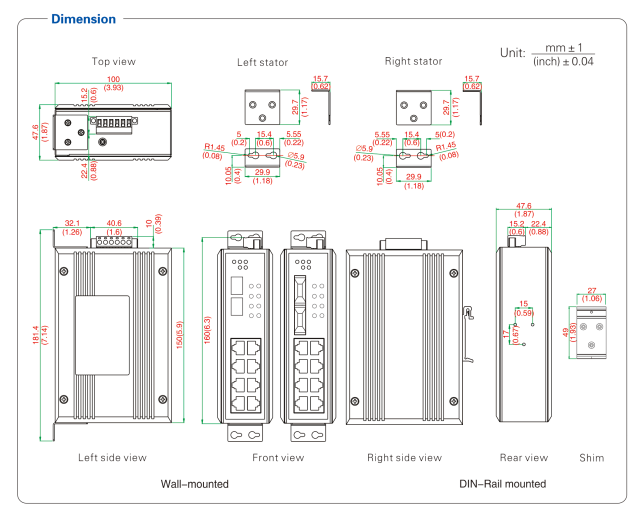

| Dimension (W x H x D) | 150mm x 47.6mm x 100mm |
| Package dimension | 250mm x 205mm x 55mm |
| Operating temperature | -40℃ ~75℃ |
| Storage temperature | -40℃ ~85℃ |
| Relative humidity | 0~95%(non-condensing) |
Industrial Standards
| EMI | FCC Part 15，CISPR (EN55022) class A |
| EMS | IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 IEC 60068-2-27(Shock) IEC 60068-2-32(Freefall) IEC 60068-2-6(Vibration) |
