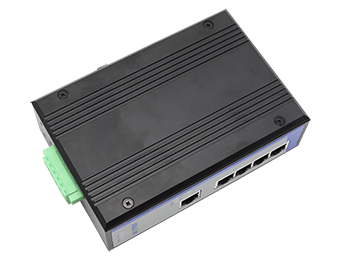

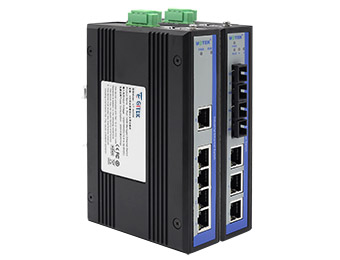

UT-6405G-POE UOTEK Gigabit POE Unmanaged Ethernet
● Supports 4 port Gigabit POE (IEEE802.3af/at)
● Adopt high quality Optoelectronic-integrated modules to provide good optical and electrical characteristics, ensure reliable data transmission and long lifecycle
● Supports full-duplex and half-duplex, auto MDI/MDI-X
● Auto-10/100/1000Mbps
● Fully automatic recognition of network interface, no need to manually operate switches
● Plug and play for easy access
● Operating temperature: -40~75°C
● Input voltage: 48VDC(46-57V), supports redundant dual power input
The UT-6405G POE series unmanaged full Gigabit industrial Ethernet switch contains 5 Gigabit interfaces, supporting 4 10/100/1000Base-T and 1 optical option, of which 4 10/100/1000Base-T supports IEEE802.3af/at (POE). Each POE port can provide up to 30W of power to connected devices (such as surveillance cameras, wireless access points and IP phones) when power is inconvenient or limited by other factors.UT-6405G POE series Ethernet switches are highly flexible and can transmit data over long distances via fiber optic ports. With high anti-electromagnetic interference capability, it ensures stable operation in harsh industrial environments and gives greater advantages to industrial applications such as industrial automation, intelligent transportation, and video surveillance.
Protocol Standards
| Standard | IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Flow control | IEEE802.3x flow control, backpressure flow control |
Interfaces
| Fiber interface | 1000Base-X (SC/FC/ST/SFP slot) |
| RJ45 interface | 10/100/1000Base-T, support 4 port POE output |
| POE pin | V+,V+,V-,V- corresponding footage1,2,3,6 (Default) |

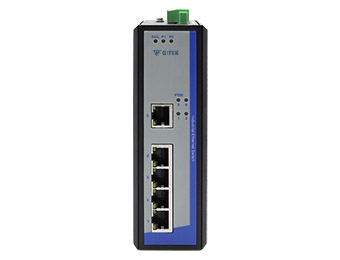

| LED indicator light | Power Indicator, Optical Port Indicator, RJ-45 Indicator, Alarm Indicator, POE Indicator |
Transmission Distance
| Cat.5e | 100m |
Fiber Patch Cord Single-mode | 1310nm 20/40/60Km 1550nm 80/100/120Km |
Fiber Patch Cord Multi-mode | 1310nm 2Km |
Switching Performance
Forwarding rate | 1488095pps |
Transmission mode | store and forward |
MAC address size | 1K |
Cache size | 1Mb |
Backplane bandwidth | 12G |
| Max. frame length | 10KB |
Power Requirement
| Input voltage | 48 VDC (46-57V), redundant dual power input |

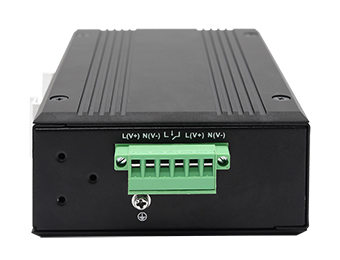

| Interface terminal | One pluggable 3-pin terminal block |
| Power Consumption | Max. consumption power for each port about 30 W, total power consumption no more than 80W. |

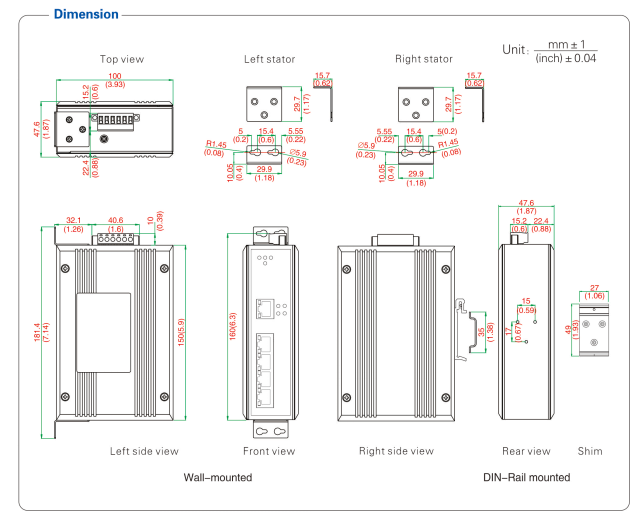

Mechanical Characteristics
Dimension (W x H x D) Storage temperature
| IP protection level | IP40 |
| Weight | 0.83kg |
| Installation | DIN-Rail /Wall Mounted |
| Dimension (W x H x D) | 150mm x 47.6mm x 100mm |
| Package dimension | 250mm x 205mm x 55mm |
| Operating temperature | -40℃ ~75℃ |
| Storage temperature | -40℃ ~85℃ |
| Relative humidity | 0~95%(non-condensing) |
Industrial Standards
| EMI | FCC Part 15，CISPR (EN55022) class A |
| EMS | IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 IEC 60068-2-27(Shock) IEC 60068-2-32(Freefall) IEC 60068-2-6(Vibration) |
